Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm GM LS1/2/6, and Fuel Rail Kit - Silver

Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm GM LS1/2/6, and Fuel Rail Kit - Silver

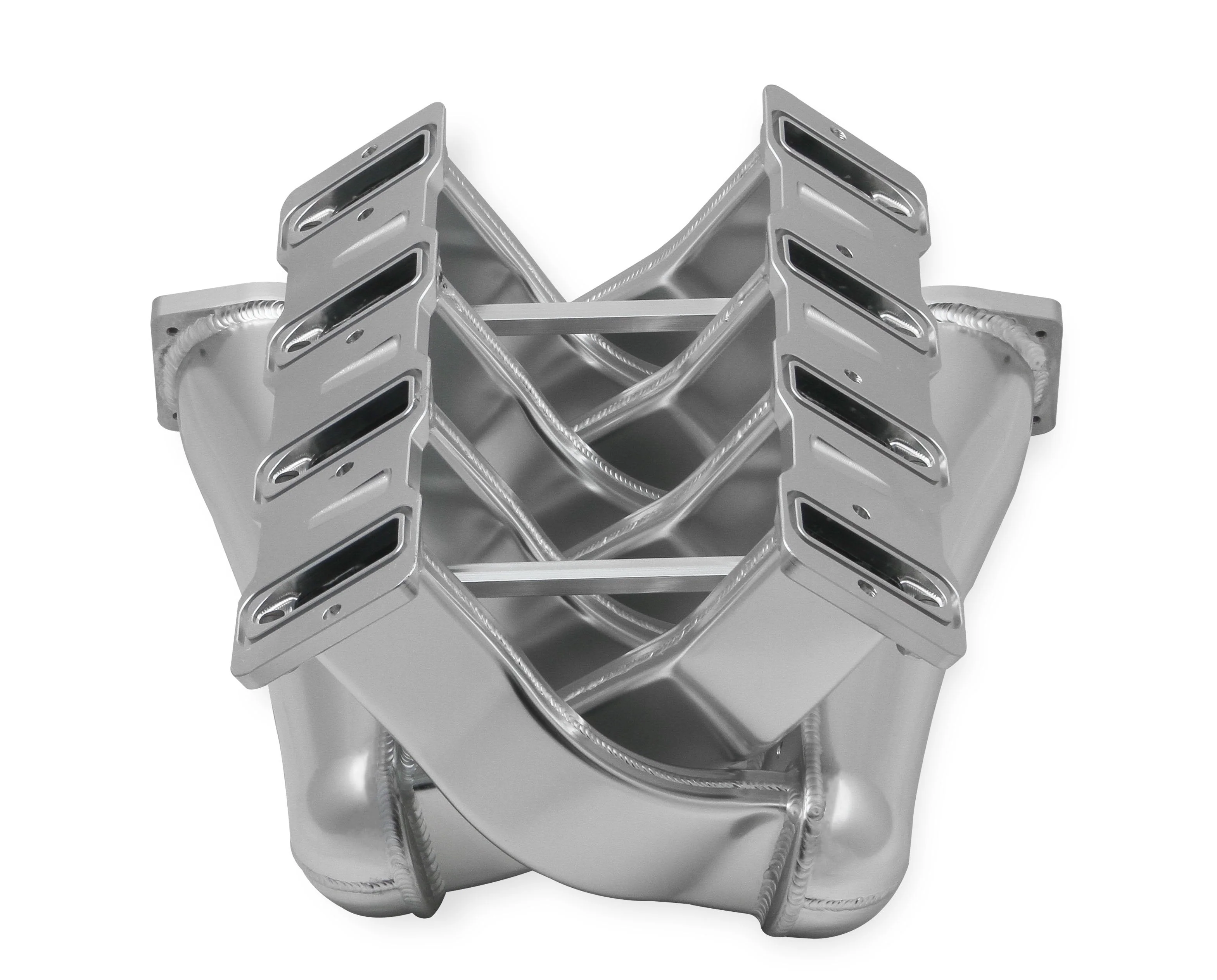

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 2x4 EFI + Fuel Rail Kit Silver with Sniper logo

Overview
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***

Features:

• Silver finish creates high impact under-hood styling
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• Twin 92mm throttle bore openings for increased air flow
• 100% TIG welded for strength and durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Dual plenum design ideal for street max effort engines and boosted applications
• Long Intake runner lengths (12.75 inchesoffering low end torque and operating range of 1600-6800 RPM
• Product includes all gaskets and hardware for a hassle-free installation

Details:

• Color: Silver
• Construction: Fabricated
• Engine: GM LS1/LS2/LS6
• Finish: Silver
• Front Height: 11.082 inch
• Front Width: 19.4292 inch
• Fuel System Type: EFI
• Injector Style Provision: LS1/LS6 EV1 Jetronic
• Injector Style Provision: LS2 EV6 USCAR
• Manifold Type: Fabricated
• Rear Height: 9.738 inch
• Rear Width: 13.2844 inch
• Recommended Use: Forced Induction
• RPM Power Band: 1500-6500 RPM
• Runner Length: 4.921" (125mm)
• Style: EFI
• Throttle Bore: 92mm
• Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
• Warranty: Limited 90 Day

Links
Instruction Sheet
