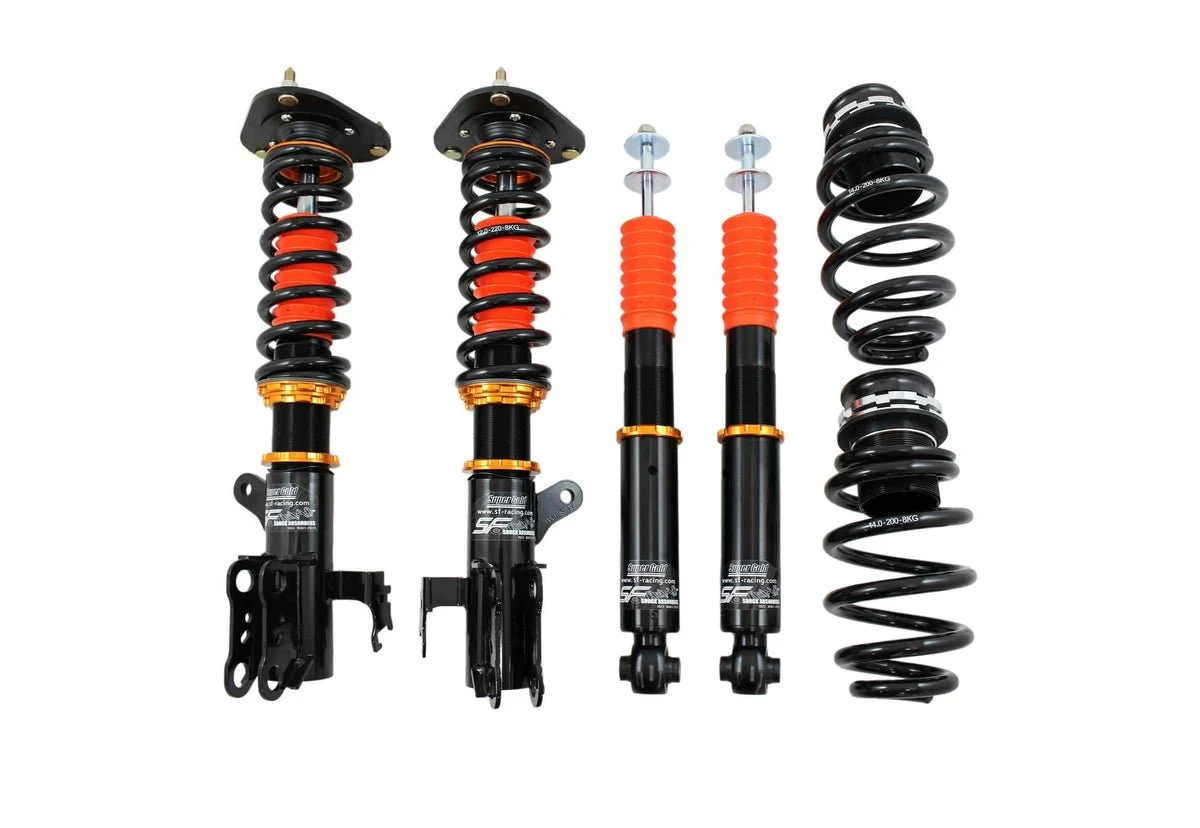

SF Racing Track Coilovers for 2011-2023 Chrysler 300C (LD)

SF Racing Track Coilovers for the 2011-2023 Chrysler 300C (LD) are engineered for enthusiasts who demand precision and control on the track. These coilovers are specifically designed with advanced valving in the struts, delivering superior handling and responsiveness tailored for track racing while still being versatile enough for street use.

SF Track Coilovers provide a wide range of ride height adjustability below factory height without compromising spring travel, ensuring an optimal balance between performance and comfort. Each corner features 32 levels of damping adjustability, allowing precise tuning of rebound and compression with a single adjustment knob. Our coilovers include hardened rubber top mounts to minimize noise and enhance durability, and some have optional pillowball bushings available to increase steering response even more.

Protected with an anodized coating, SF Track Coilovers are built to resist rust and corrosion under extreme track conditions and harsh environmental exposure. The result is a coilover system that’s durable, reliable, and crafted for motorsport-level performance.

Perfect for Track Enthusiasts

Whether you're chasing lap times at the circuit or carving corners on backroads, SF Racing Track Coilovers deliver unmatched precision and versatility. Built with high-quality materials sourced globally, they offer premium performance at an accessible price point.

Features

• Monotube Damper Design – Improves heat dissipation and reduces oil leakage.
• 32-Level Adjustable Damping – Fine-tune rebound and compression for ideal ride quality.
• Adjustable Ride Height – Lowers 1-2.5 inches below factory height without sacrificing suspension travel.
• Independent Lower Mount Adjustment – Maintains shock and spring integrity while adjusting height.

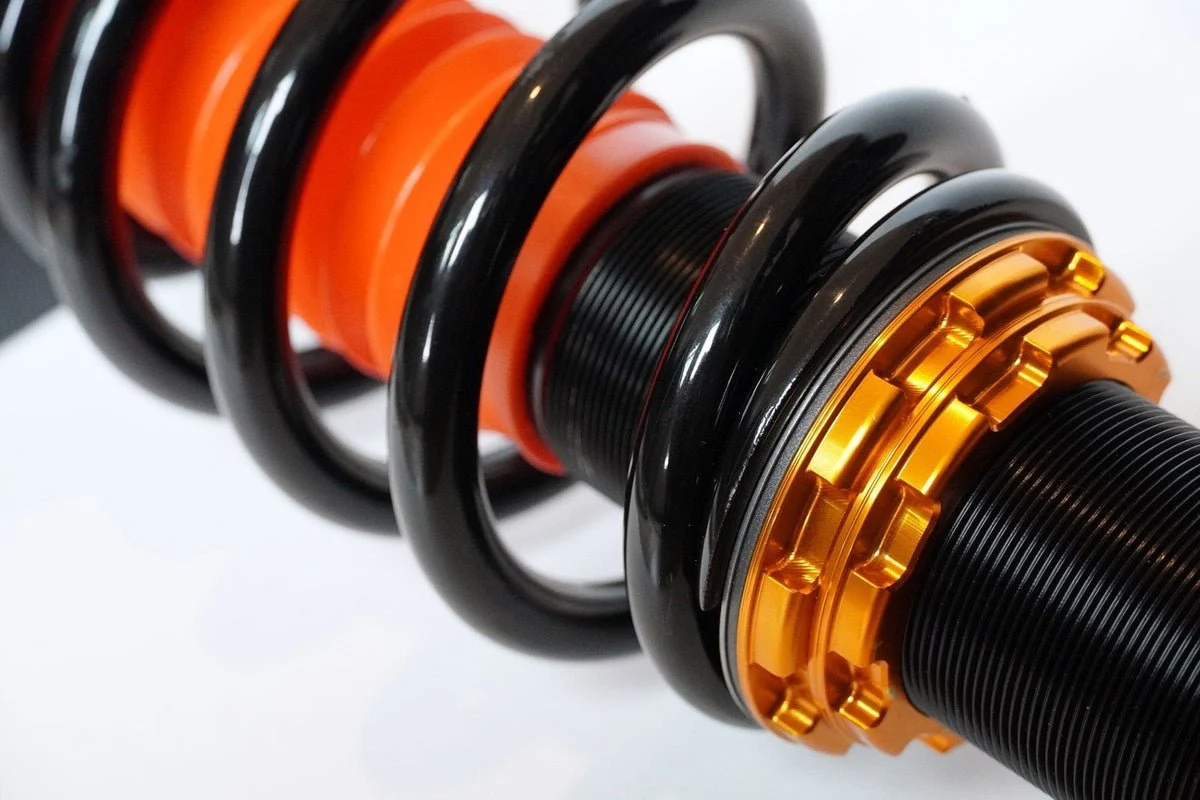

• T6-6061 Aluminum Construction – Lightweight, corrosion-resistant anodized top mounts, perches, and collars.
• Electroplated Shock Body – Zinc-coated for rust protection.
• Low-Friction, Pressure-Resistant Housing – Ensures smooth damping and longevity.

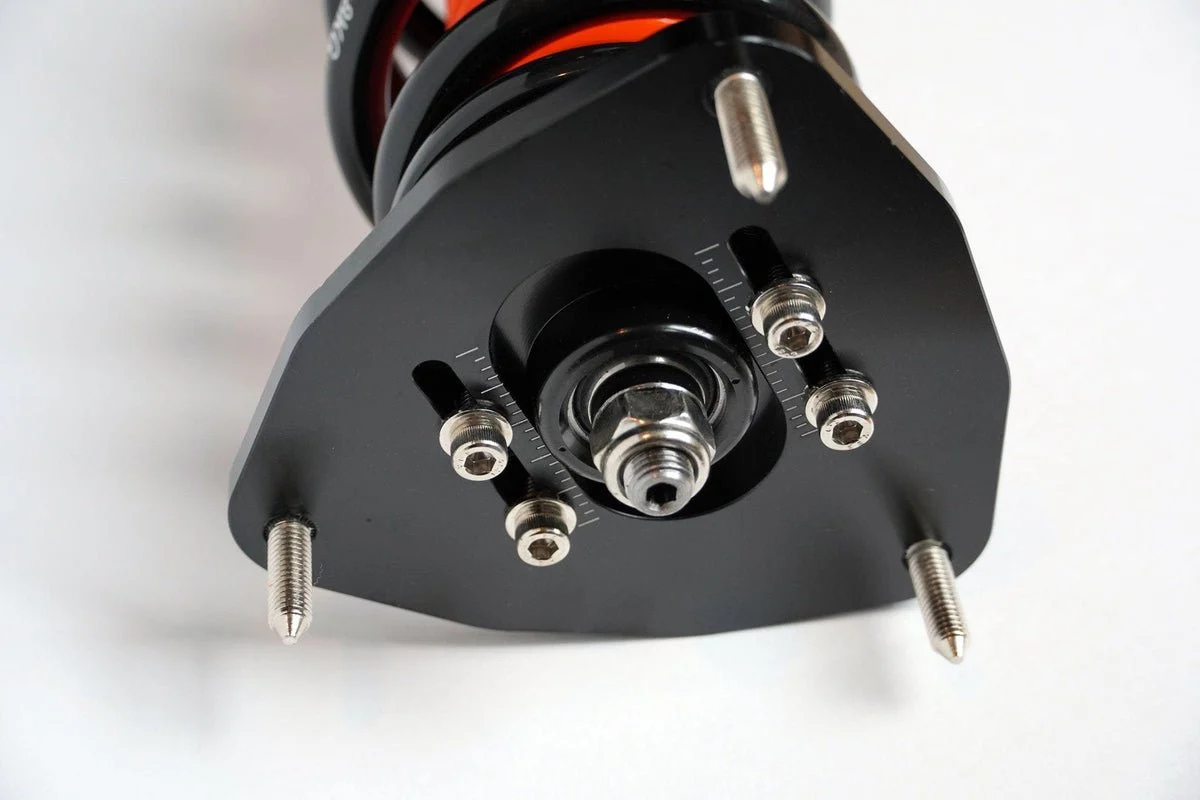

• Pillowball or Reinforced Rubber Top Mounts – Reduces noise while improving handling.
• SAE9254 Japanese Cold-Wound Springs – Durable and consistent performance.
• Japanese NOK Seals & 20W Italian IP Damping Oil – Prevents leaks and ensures high-performance damping.
• Integrated Dust Boots & Bump Stops – Protects components from debris and wear.
• 100% Bolt-On Replacement – No modifications required (unless otherwise stated in the Specifications data).

Specifications

Part Number	SF-CR01-02-TR
Vehicle	2011-2023 Chrysler 300C
Drivetrain	RWD
Chassis	LD
Damper Model	Track Series
Damping Adjustability	1-Way: Rebound and Compression
Damper Size - Front	52mm diameter
Damper Size - Rear	50mm diameter
Spring Rates - Front	12 kg/mm
Spring Rates - Rear	14 kg/mm
Top Mounts - Front	Aluminum with Rubber Bushing
Top Mounts - Rear	Aluminum with Rubber Bushing
Suspension Design - Front	True Coilover
Suspension Design - Rear	Divorced (Separate shock and spring)
Fitment Notes	-
