Redline Double Row LED Tailgate Light Bar with Reverse Light, Brake Light, Turn Signals and Hazard Light

BE SEEN - Stand out from the Herd with OPT7 Redline Double LED Tailgate Light Bar
Durable - design with aluminum material with IP67 rating, silicone covering for protection from all the elements. You name it!
Give em' a view worth getting used to! Our Redline is built to last unlike the knock offs on the market. We've designed it and we've built it!
You can count on it working even at a temperature rating of -20 F to 170 F. Guaranteed to be the best way to light up your ride! OPT7 Redline Double Tailgate Light Bar shines brighter and further than ever seen before without breaking your wallet.

Tinted Windows Making It Hard To See Behind You?
Our extra bright reverse lights will help illuminate the area behind your ride when reversing. Have a backup camera? Say goodbye to grainy videos and see a much clearer picture at night!

Go Ahead, Take It To The Lake.
A lot of folks claim to be waterproof, but Redline actually is. Using a rust-resistant aluminum body and an IP67 waterproof silicone, Redline is protected end to end from any sand, dirt, dust, snow, or water.

Can Handle a Minnesota Winter.
It's not always sunny in Minnesota, but that's OK! Redline is a built to last even at negative 20 Fahrenheit!

The best part...no drilling required!
Made to be as a simple and strong as possible. Simply peel, prep, press onto your pickup and this add-on is as good as factory installed. Comes with a tough-as-nails adhesive enhancer that increases hold strength over 5x. No need to drill, it ain't goin' anywhere.

Multiple Ways to Install:

• 1) Connect to the 4-PIN: for 2014 and older vehicles by plugging into the 4-pin plug directly and hardwire the reverse wire.
• 2) Plug-n-Play to the 7-PIN: for 2005-2014 F150, Chevy Silverado/GMC Sierra 1500, Ram and 2007-2021 Tundra, search OPT7 Harness with Reverse or Click Here.
• 3) Plug-n-Play for 2015-2023 F150: search OPT7 F150 Harness
  or Click Here (for F150 21-23 with Factory Halogen Tail Lights and BLIS(Blind Spot Monitor))
  or Click Here (for F150 18-20 without BLIS)
  or Click Here (for F150 15-20 with BLIS)
  or Click Here (for F150 15-18 without BLIS) .
• 4) Plug-n-Play for 2022-2024 Ford Maverick 2.0L EcoBoost without BLIS : search OPT7 Ford Maverick Harness or Click Here.
• 5) Plug-n-Play for 2019-2024 Chevy Silverado/GMC Sierra 1500: search OPT7 Chevy Silverado Harness or Click Here.
• 6) Hardwire to the Tail Light: 2021-2024 F150, 2015-2018 Chevy Silverado/GMC Sierra 1500, 2015+ Ram and 2022+ Tundra will need to search OPT7 Hardwire Kit or Click Here to assist the hardwire

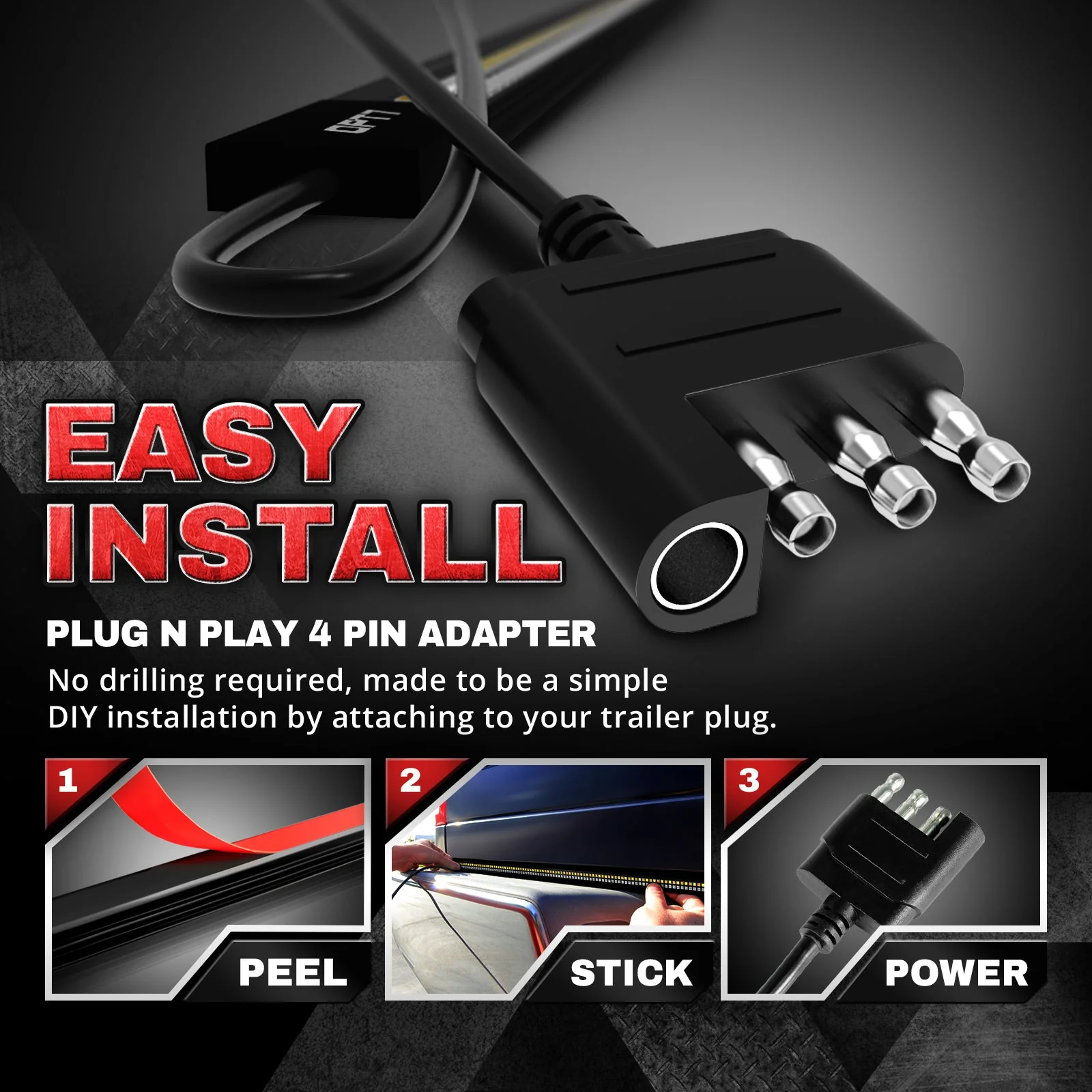

Plug 'N' Play Ready
Plugs directly into your 4-way flat trailer adapter for a quick install. (Reverse light will require additional wiring, instructions provided if needed). If you have a 7-way round trailer adapter you will need to get the 7-Way Round Blade to 4-Way Flat Pin Adapter (Click Here). Planning on doing some towing? Purchase our Y-Splitter (Click Here) and power both your tailgate light bar and the lights on your trailer at the same time.

Spare Tire Access Port Accessibility
Fitment for the Redline Double Row LED is based on the amount of Tailgate's available flat surface length-wise. If your vehicle has 48" of available space length-wise across the tailgate then the 48" version will fit nicely. If you have 60" of available space length-wise across the tailgate then the 60" version should be purchased.

Redline Double Light Bar Coordination:

• Top Row: Turn Signal/ Hazards
• Bottom Row: Brake/ Running/ Reverse Lights
• Turn Signals and Brake will luminate sequentially together and pause upon activation for safety precaution.
• Optional Recommend:
  Redline Easy Connect Harness for 2019-2024 Chevy Silverado / GMC Sierra 1500 (Click Here)
  Redline Easy Connect Harness for F150 2021–2023 with Halogen and BLIS (Click Here)
  Redline Easy Connect Harness for 2015-2020 Ford F150 with BLIS (Click Here)
  Redline Easy Connect Harness for 2018-2020 Ford F150 without BLIS (Click Here)
  Redline Easy Connect Harness for 2015-2018 Ford F150 without BLIS (Click Here)
  Redline Easy Connect Harness for 2022-2024 Ford Maverick 2.0L EcoBoost without BLIS (Click Here)
  Redline 4.9ft Hardwire Harness Kit (Click Here)
  Redline Dual 7-Pin Splitter with Reverse Wire (Click Here)

Specifications:

• LED Count: 560 LEDs on 48-inch / 2025 RED LED SMD Chips or 720 LEDs on 60-inch / 2025 RED LED SMD Chips
• Dimensions: 48-inch (L48" x W0.27" x H0.6") or 60-inch (L60" x W0.27" x H0.6")
• Wattage: 3W
• Voltage: 12v
• Amperage: 0.25 amp
• Turn Signal Style: Flash / Blink
• Waterproof Rating: IP67
• Material: Rust-Resistant Aluminum
• LED Type: Advanced Bright LED
• Feature Set: Running | Brake | Turn Signals | Reverse | Hazard Light
• The Reverse Light will Blink Three Times Then Turn to Normal White Light
• Working Temp: -20°F to 170°F
• Plug’n’Play: 4-Pin Trailer Adapter with Backup wiring
• Mounting: Acrylic Double Sided Adhesive with reinforce applicator
• Not Compatible With: If your vehicle's tail lights are LED, the Tailgate Bar is not compatible.
• Not Compatible With: 2022+ Ford Maverick 2.5L Hybrid Engine
• Compatible With:
  💡60" Bar: 2019-2024 Chevy Silverado/GMC Sierra 1500 and 2015-2023 F-150 require OPT7 Easy Connect Harness (sold separately).
  ⚠️60" Bar:  Truck with a trailer tow package or sensors (2015+ F150, RAM, 2015-2018 Silverado/Sierra) requires OPT7 Hardwire Kit (sold separately - Click Here).
  💡48" Bar: 2022-2024 Ford Maverick 2.0L EcoBoost without BLIS requires OPT7 Easy Connect Harness (sold separately - Click Here). It also fits 2005-2022 Chevy Colorado/GMC Canyon WITHOUT TOW PACKAGE.  2015+ Frontier, Ranger requires OPT7 Hardwire Kit (sold separately - Click Here).
  ⚠️48" Bar:  Fits for mid-size pickup trucks (Tacoma, Chevy Colorado, GMC Canyon, Frontier, Ranger, Maverick etc.).

Warranty Covered:
Includes our free 1 Year Warranty (starting from the order date)

Install Guide:

• Redline Double Row Tailgate Light Bar Installation Guide - Click Here
