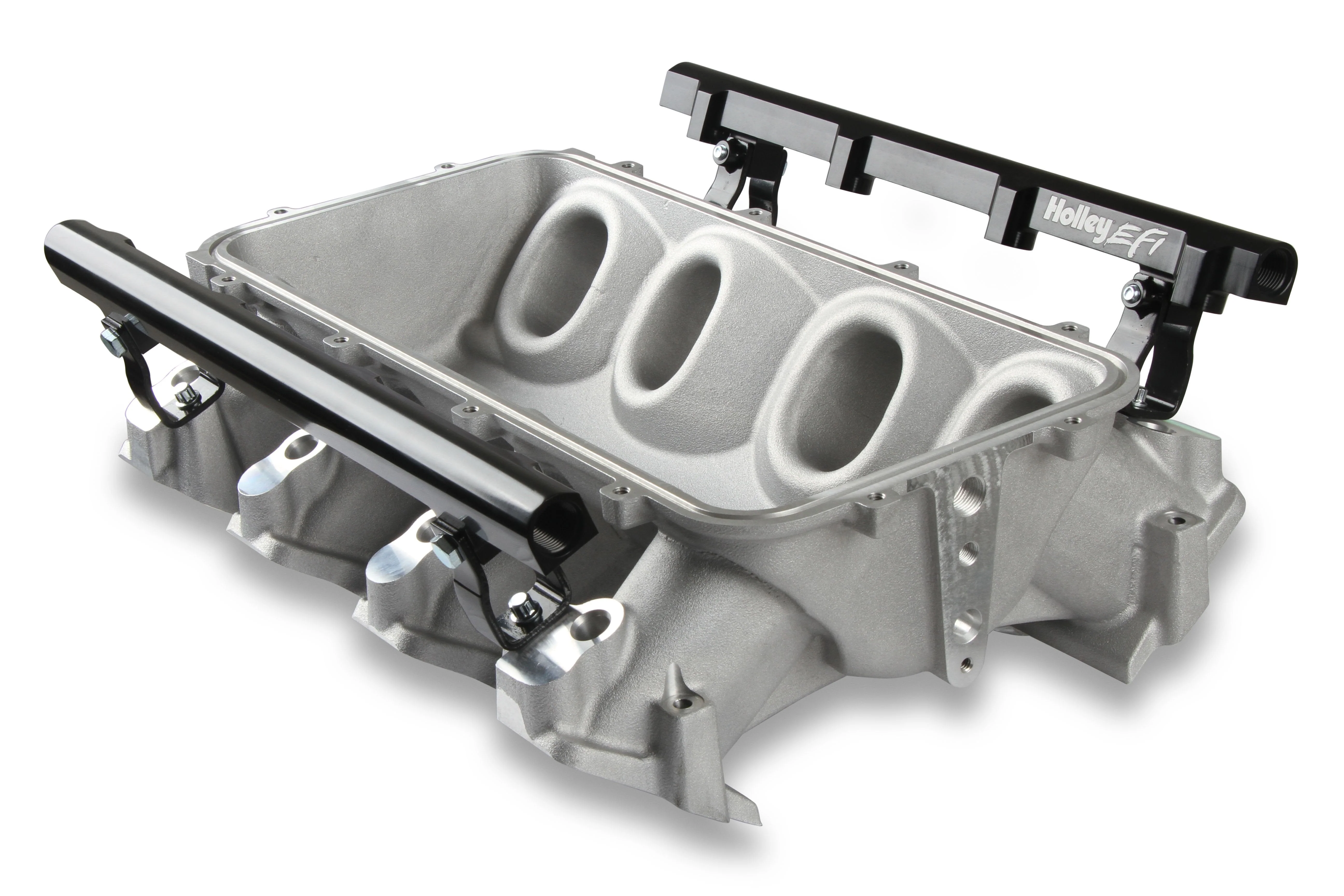

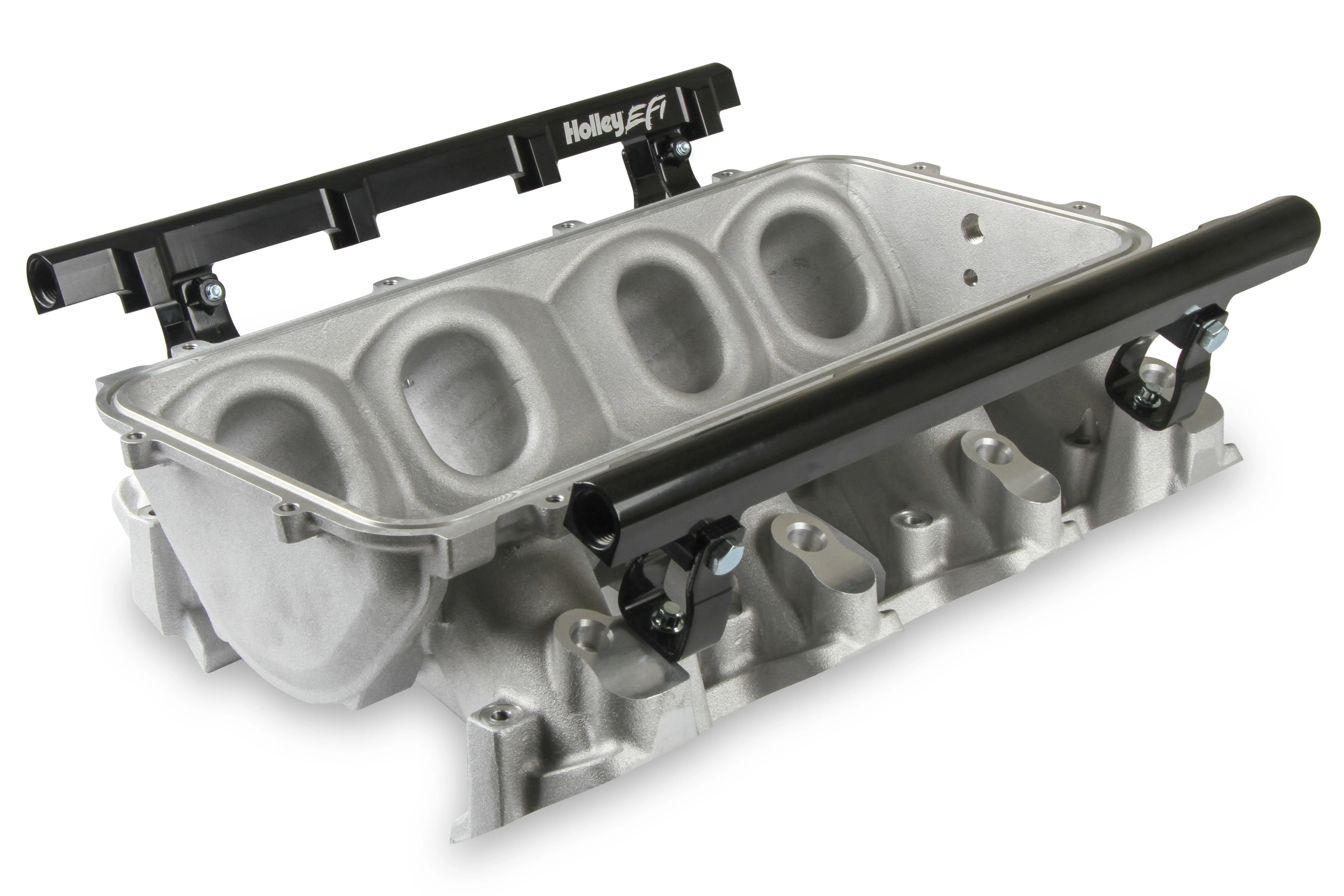

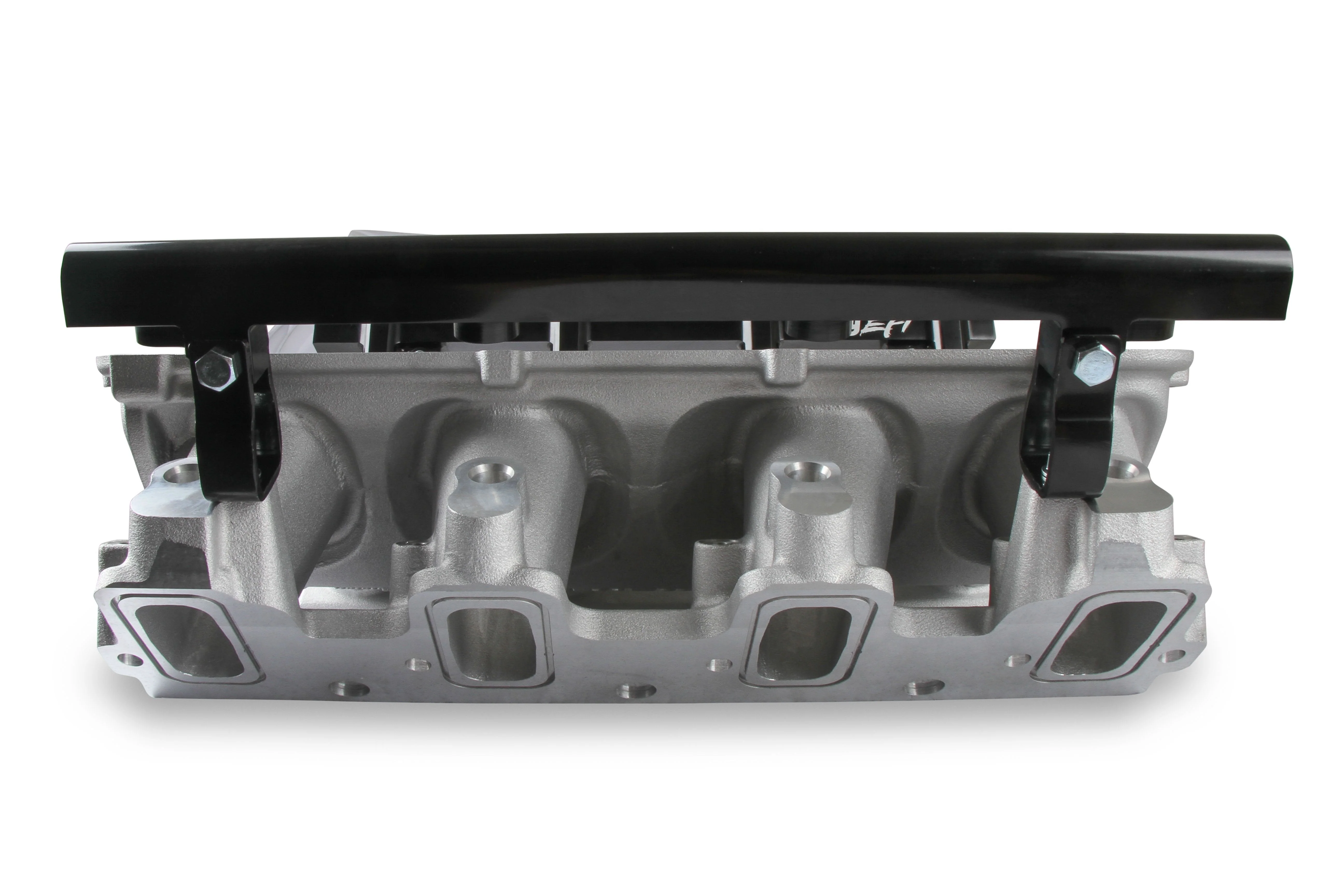

Holley Lo-Ram Manifold Base and Fuel Rails Single Fuel Injector GM LS3/L92

Holley Lo-Ram Manifold Base and Fuel Rails Single Fuel Injector GM LS3/L92

Adapter from 95mm GM LS Throttle Body Intake Flange to 92mm Mopar Hellcat Gen III Hemi Throttle Body

Overview
Allows Use of 92mm Mopar Hellcat Gen III Hemi Thottle Body on Intakes designed for 95mm GM LS Throttle Body

Features:

• Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
• Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

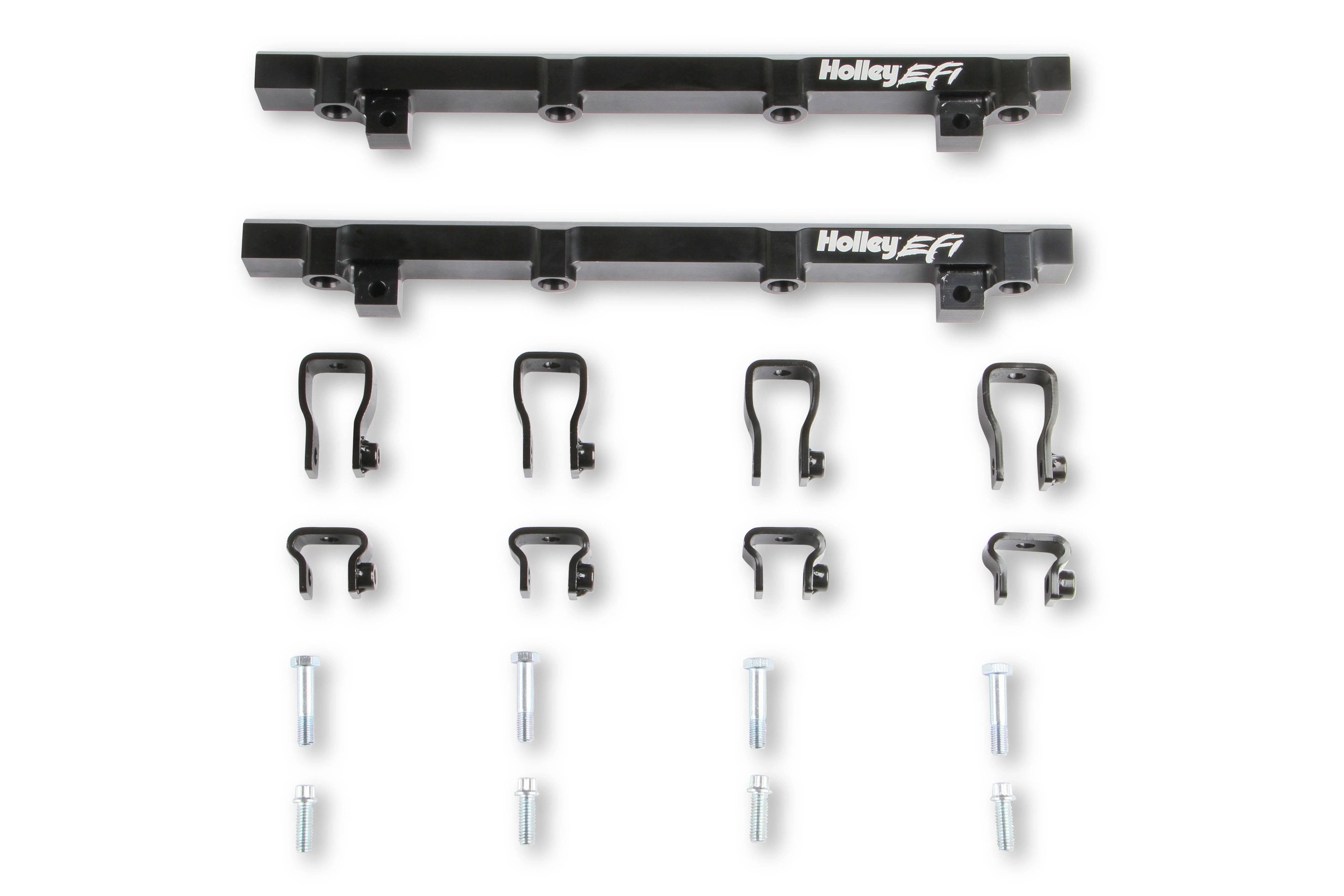

• Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
• Modular LS3 Lo-Ram design allows customization for user desired configurations
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
• Available with both as-cast satin and black power-coat finishes
• High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)

Details:

• Color: Silver
• Construction: Cast
• Engine: GM LS3/L92
• Finish: Silver
• Fuel System Type: EFI
• Injector Quantity: Single
• Inlet Location: Top
• Manifold Type: Lo-Ram
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Warranty: Limited 90 Day

Links
Instruction Sheet
