V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 4.500" ID V-Band Flanges (matching tube size: 4.500" OD) and will accept V-Band Flanges with an overall OD of 5.240".
If you need assistance in finding a matching V-Band Clamp for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.
This V-Band Clamp is a suitable replacement for, or compatible with, the following SKU:
- 22145 — 4.500" "Male" V-Band Flange 304 Stainless
- 22161 — 4.500" "Female" V-Band Flange 304 Stainless
- 22113 — 4.500" V-Band Assembly "Male/Female" 304 Stainless

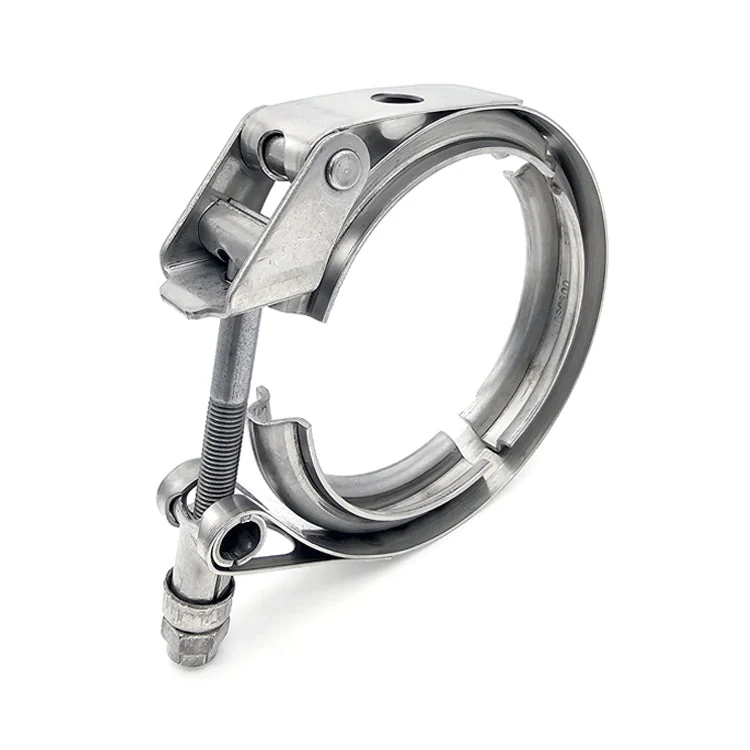

Ace Race Parts 304 Stainless Steel V-Band Clamps feature a "Quick Release" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. A major benefit of the "Quick Release" style clamp is the quick release latch that is used to secure the clamp in place. The latch allows for quick assembly and disassembly in applications where frequent removal is required. The T-Bolt and Nut section of the "Quick Release" V-Band clamp is also removable and replaceable, should the user need to do so.
Description
V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 4.500" ID V-Band Flanges (matching tube size: 4.500" OD) and will accept V-Band Flanges with an overall OD of 5.240".
If you need assistance in finding a matching V-Band Clamp for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.
This V-Band Clamp is a suitable replacement for, or compatible with, the following SKU:
- 22145 — 4.500" "Male" V-Band Flange 304 Stainless
- 22161 — 4.500" "Female" V-Band Flange 304 Stainless
- 22113 — 4.500" V-Band Assembly "Male/Female" 304 Stainless
Ace Race Parts 304 Stainless Steel V-Band Clamps feature a "Quick Release" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. A major benefit of the "Quick Release" style clamp is the quick release latch that is used to secure the clamp in place. The latch allows for quick assembly and disassembly in applications where frequent removal is required. The T-Bolt and Nut section of the "Quick Release" V-Band clamp is also removable and replaceable, should the user need to do so.
